Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ

Name: Intelligent Basic Power Distribution Unit DC 48v 50 60HZ
Brand: COOLNET
Price: 50 USD

Buy cheap Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ product

Brand Name : COOLNET

Model Number : Basic series PDU

Certification : CE,ISO,ROHS

Place of Origin : China

MOQ : 1unit

Price : 50~500USD per unit

Payment Terms : L/C, T/T

Supply Ability : 10000 unit per month

Delivery Time : 15 days

Packaging Details : Packed in plywooden case and CTN

Input type : AC single-phase, AC three-phase, DC 48v

Frequency : 50/60HZ

Operating temperature : -10℃+75℃

Input voltage range : 100~277VAC/312VAC~418VAC/100VDC~240VDC/-43VDC~56VDC

Output rated voltage : 220VAC、250VAC、380VAC、-48VDC、240VDC

Installation method : Horizontal installation, vertical installation

Contact Now

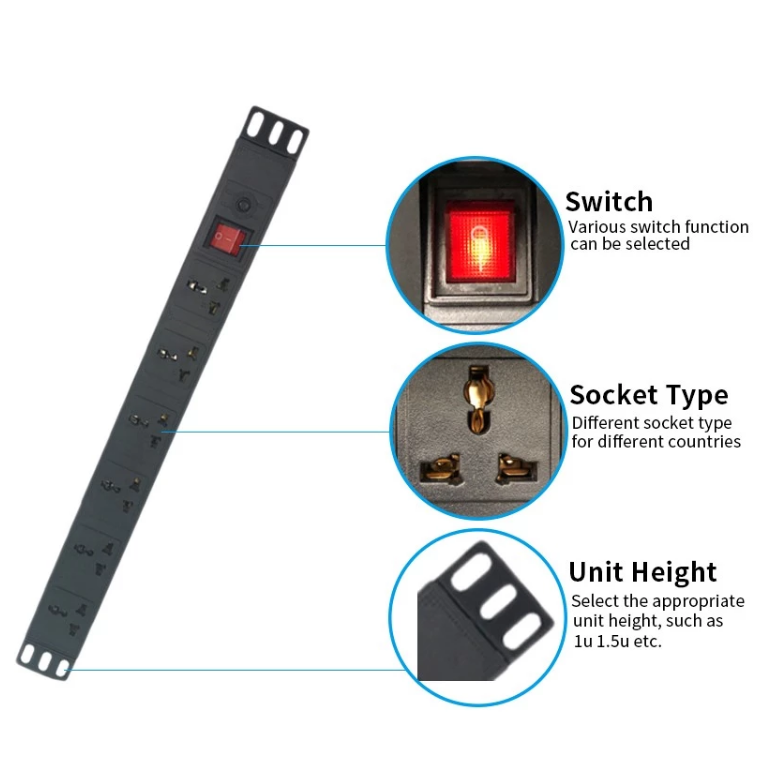

Basic intelligent power distribution unit

Product Introduction

The standard power socket hole modules of various countries in the world can meet the different needs of customers in many countries. Multi-purpose output jacks and IEC output sockets are suitable for different countries.
Plugs for imported instruments and equipment.

1) Dual input, IEC socket input, front panel input, rear input, end input, etc. can be realized.
2) National standard, British standard, German standard, American standard, French standard, Indian standard, etc. with various specifications.
3) Plugs of various specifications such as 10A, 16A, 25A, 32A and industrial connectors are available.

Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ

Scope of application

Communication industry
Security system
IDC engine room
Electric power system
Track traffic
Enterprise small and medium data center

Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ

Advantages

Security

Excellent overload protection capability.

Green

The efficiency management can be carried out by energy consumption detection to promote energy-saving and emissionreduction.

Intelligence

Through the intelligent protection of electrical safety lT equipment, it can be remotely

managed.with socket level,phase level and PDU level current metering function and the threshold / alarm function.

Parameter

PDU		Parameters
input	Input type	AC single phase, AC three phase,-48VDC,240VDC,336VDC
	Input mode	Transparent open type junction box,power cord, cable, industrial connector, socket etc.
	Input voltage range	100-277VAC/312VAC-418VAC/11VDC-240VDC/-43VDC- -56VDC
	AC input frequency	50/60Hz
	total load current	MAX 63A
Output	Storage temperature	-40 - +70
	Relative humidity	5-95% (No condensation)
	Atmospheric pressure	70kPa - 106kPa
	Working altitude	No more than 4000M
Environmental	Working temperature	-10 - +75
	Storage temperature	-40 - +80
	Relative humidity	5-95% (No condensation)
	Working altitude	No more than 4000M
	IP rating	IP20
Protection	input protection module	Circuit breaker, lightning protection, leakage protector, temperature insepction module (optional)
Protection	Output protection module	Circuit breaker, fuse box, fuse(optional)

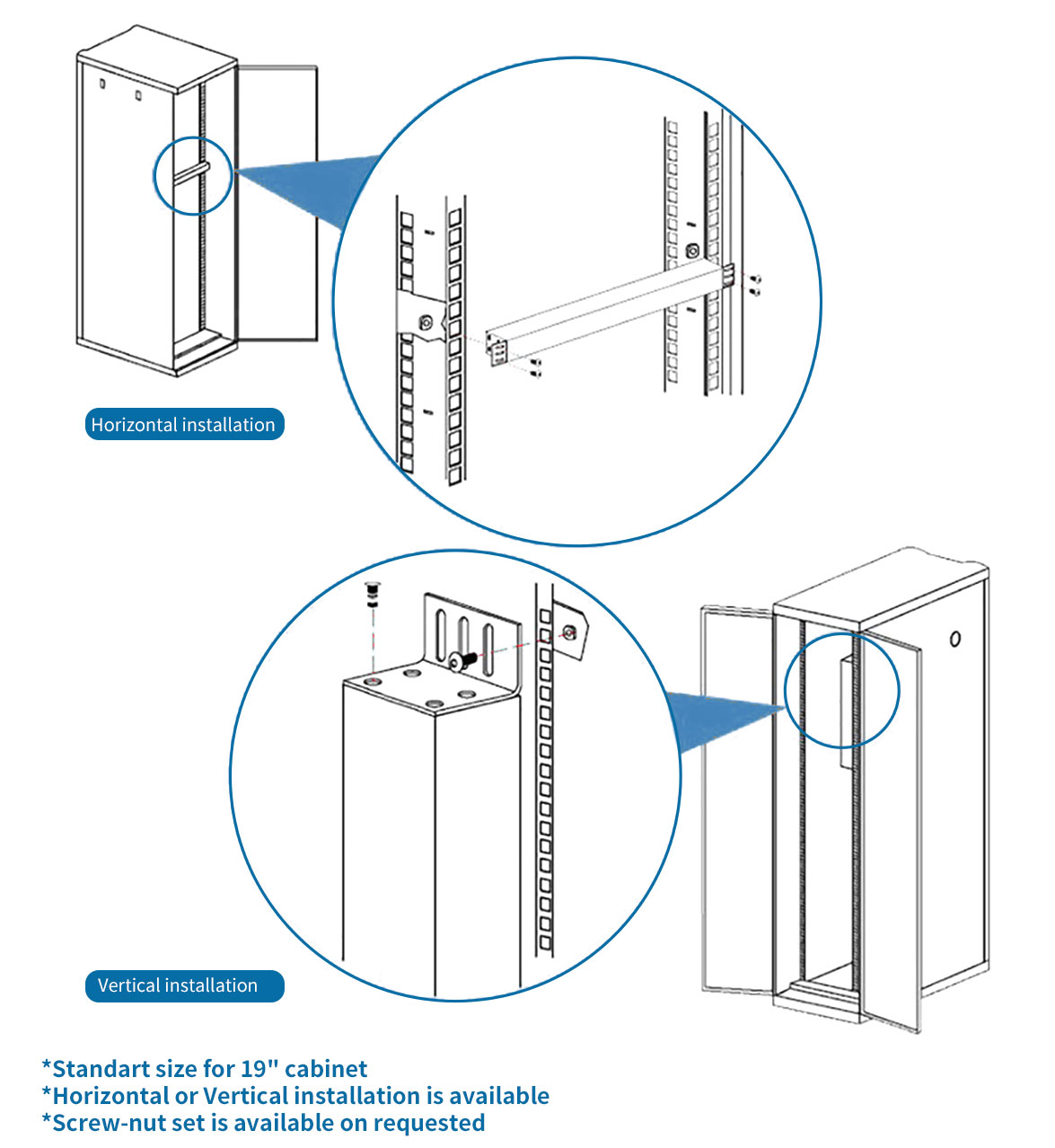

Method of installation

International standard rack mount installation
Easy to install on 19-inch standard cabinets and racks, only occupying 1U of cabinet space, support horizontal installation (standard 19-inch), vertical installation
(installed in parallel with the cabinet column), and can also be applied to other occasions.

Certification

Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ

Packing&Delivery

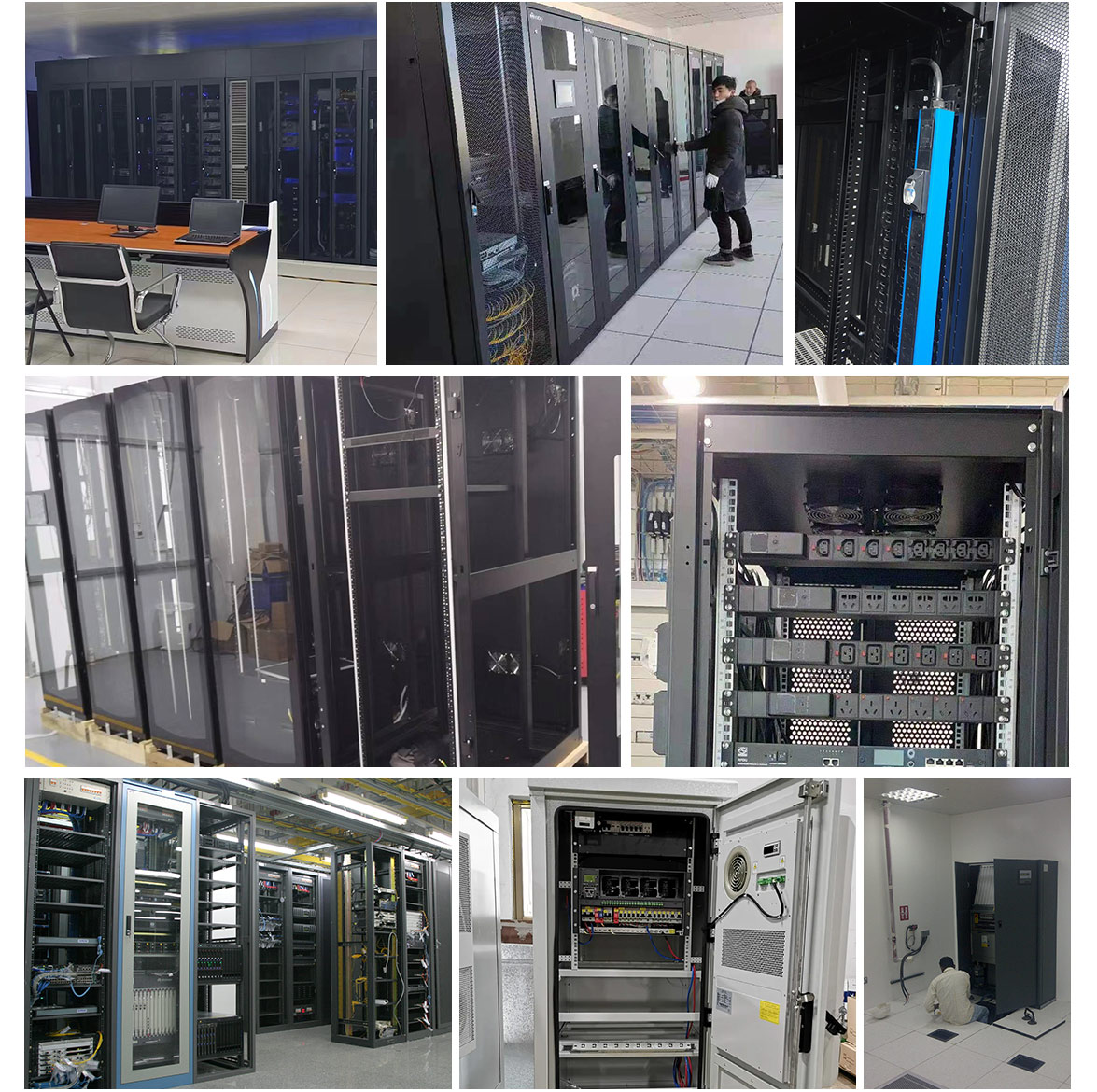

Case

Factory

Intelligent Basic Power Distribution Unit DC 48v 50 / 60HZ
