5000BTU 230V Electrical Cabinet Air Conditioner Embedded Panel Mount

Name: 5000BTU 230V Electrical Cabinet Air Conditioner Embedded Panel Mount
Brand: Coolnet
Price: 400.00 USD

Buy cheap 5000BTU 230V Electrical Cabinet Air Conditioner Embedded Panel Mount product

Brand Name : Coolnet

Model Number : CJK400-600MQ

Certification : CE/ISO9001

Place of Origin : China

MOQ : 1set

Price : $400.00-5000.00/set

Payment Terms : T/T, L/C

Delivery Time : 20-35working days

Packaging Details : Packed in plywooden case and CTN

Supply Ability : 3000 Unit/Units per Month

Cooling Capacity : 300W

Color : Black/Grey white/other custom colors

Mounting : Door Mounted

Power : 1N-220V-50Hz,110v/50hz/60hz,48V

Application : Telecom Sites, Base Station

Type : Cabinet Air Conditioner

Airflow : 300m³/h

Core Components : Compressor, Condenser, Evaporator, Fans

Heat Exchanger : 120W/K

Operating Voltage : 220V, 50/60Hz

Warranty : 1 year

Certificate : ce, ISO9001, ISO14001, CE

Refrigerant : R134a

Contact Now

Embedded Panel Mount 5000BTU 230V AC Outdoor 1500W Cabinet Air Conditioner for Telecom/Electric Enclosure Cooling

Product Introduction

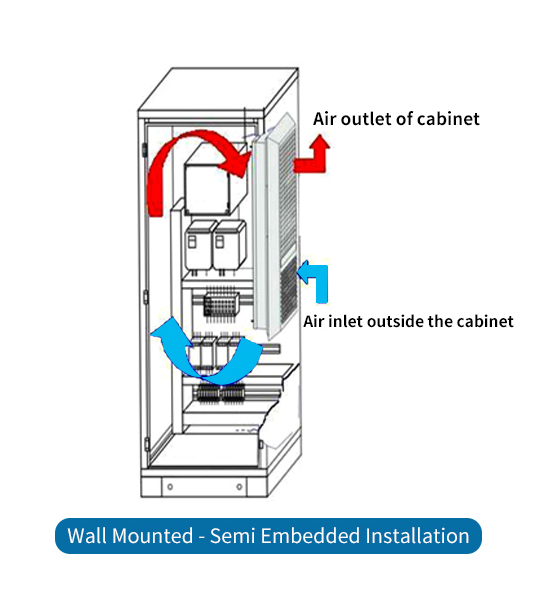

Coolnet EA series air conditioner has short air duct, well distributed airflow and close loop cooling design. The protective cover is integrated, thus no air conditioner cover is needed on cabinet.

The benefits result from using cabinet air conditioner is greater operating efficiency, lower power consumption and longer life for heat sensitive equipment.

Besides this, we also have AC 300w to 5000w, DC 300w to 5000w cabinet air conditioner , Cabinet Heat Exchanger, Peltier Air Conditioner, etc. If you need other item, please contact us.

Benefits

5000BTU 230V Electrical Cabinet Air Conditioner Embedded Panel Mount

Features

The EA 300 is a compact, high efficient hybrid air conditioner with heat exchanger.

The design is optimized for applications with limited space available, but

where functionality and performance still cannot be compromised.

Ø 220VAC for air conditioner, -48VDC for heat exchanger

Ø 3000W cooling capacity @L35L35

Ø 120w/k heat exchanger

Ø Compact design

Ø Door mounted – easy integration in outdoor cabinets and enclosures

Ø Wide working temperature range: -40ºC to +55 ºC

Advantades

Ø Air conditioner and heat exchanger system as backup

Ø Energy saving, different cooling mode for varied ambient conditions

Ø Low noise, the noise level of unit can be reduced according to the heat load, silently operating in most time

Ø Lifetime >10 years – minimum maintenance

Ø Environmental friendly – R134a and RoHS compliant

Ø IP55 and Corrosion Proof

Ø Dedicated design by delay start

Ø RS485 for remote control

Technical Specification

Model		EA-300
Power Supply( V,Hz)		1P 220,50
Dimension (mm)	W	286
	H	445
	D	175
Cooling Capacity		300W
Running Current		1.48A
Starting Current		6.5A
Power		287W
Refrigerant Type		R134a
Noise Level		55dB
Cabinet Protection Ration	internal circuit	IP34
Cabinet Protection Ration	external circuit	IP33
Cabinet Temperature Limits		25℃~38℃(Factory Set 30℃)
Ambient Temperature Limits		-5℃~43℃
Power Connection		Triangle Power Plug( 2 Meters Length)
Weight		15Kg
Color		RAL 7035(Light Gray)
Flow Rate	internal circuit	70m3/h
Flow Rate	external circuit	150m3/h
Temperature Control Type		Digital Display
Test condition: dry bulb temperature inside the cabinet 35 ℃, wet bulb temperature 26 ℃; dry-bulb temperature outside the cabinets 35 ℃

Certification

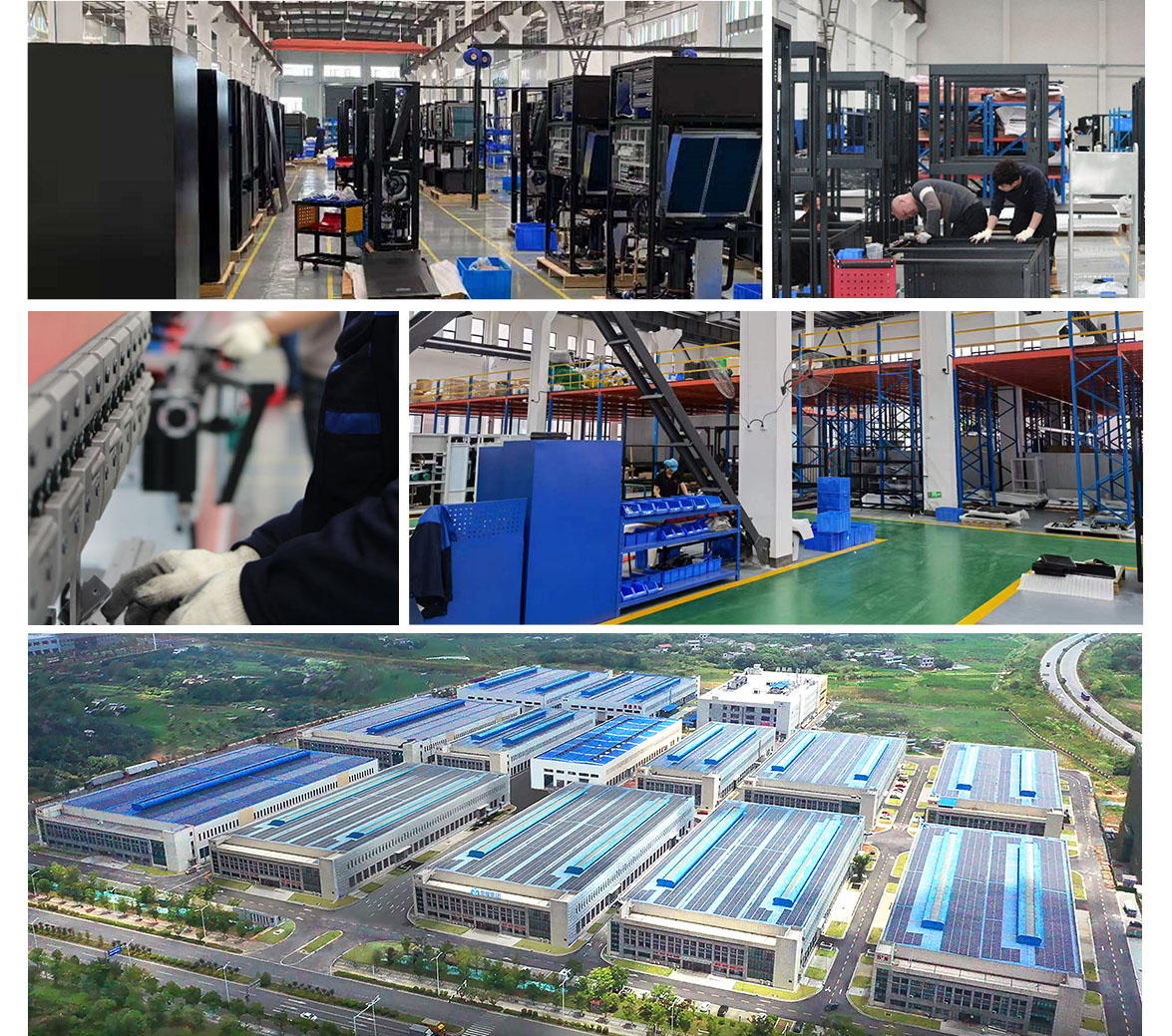

Factory View
